E-Code Wiring Diagrams


Post new topic   Reply to topic    Main Menu Forum Index -> General Help
View previous topic :: View next topic
Author Message
capthowdy_1968



Joined: 06 Apr 2007
Posts: 59
Location: St Augustine, FL
PostPosted: Sat Apr 07, 2007 6:39 pm    Post subject: E-Code Wiring Diagrams Reply with quote

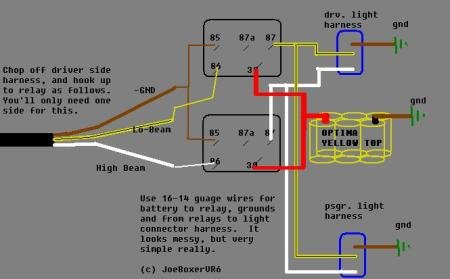

2-relay setup

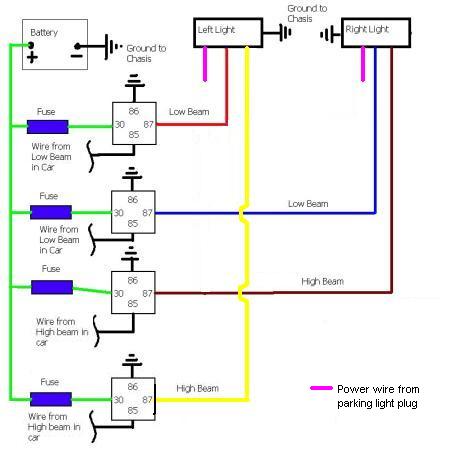

4-relay setup





Leveler wiring
